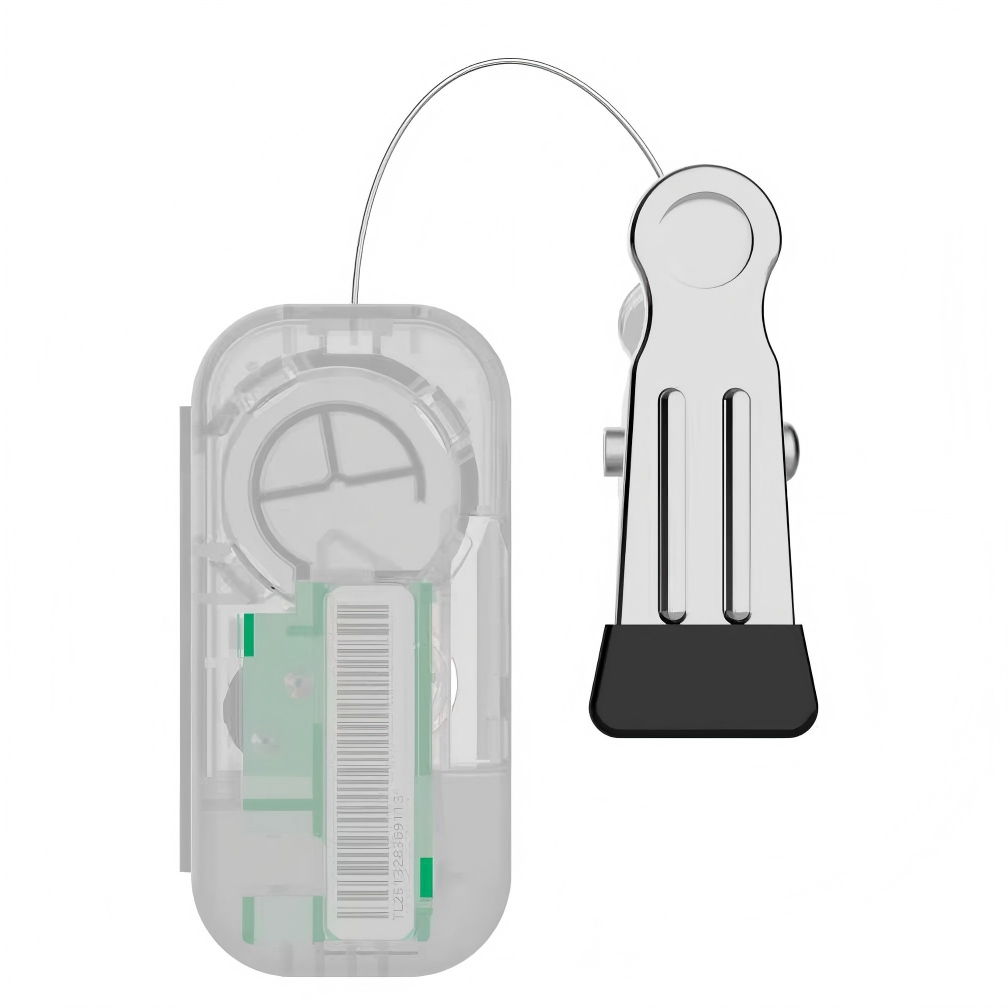

2.4GHz Wireless Pick-to-Light Tag with Clip-on for Warehouse Shelf Picking and Express Station Parcel Locating
Dimensiones :
65.8 (H) × 31.3 (V) × 12.3 (D) mmCommunication Protocol :
2.4G proprietary protocolMaterial :
Industrial-grade ABS+PCCapacidad de la batería :
CR2450; 600 mAhService Life :
>1 year (in flashing green mode, with 1 hour of flashing per day)Flashing Colors :
7 colorsMounting Method :
Clip (standard accessory)Product Specifications
| Product Model | Lighting Tag-D1 |
| Basic Parameters | |
| Dimensions (L×W×H) | 65.80 × 31.30 × 12.3 mm |
| External Color | White |
| Material | Industrial-grade ABS+PC |
| Tag Weight | 18.5g |
| Accessory Weight | Clip: 10.8g / Mounting Plate: 9.8g |
| Battery | 550 mAH |
| Service Life | 1 year battery life [in green flashing mode, flashing 6 minutes per day] |

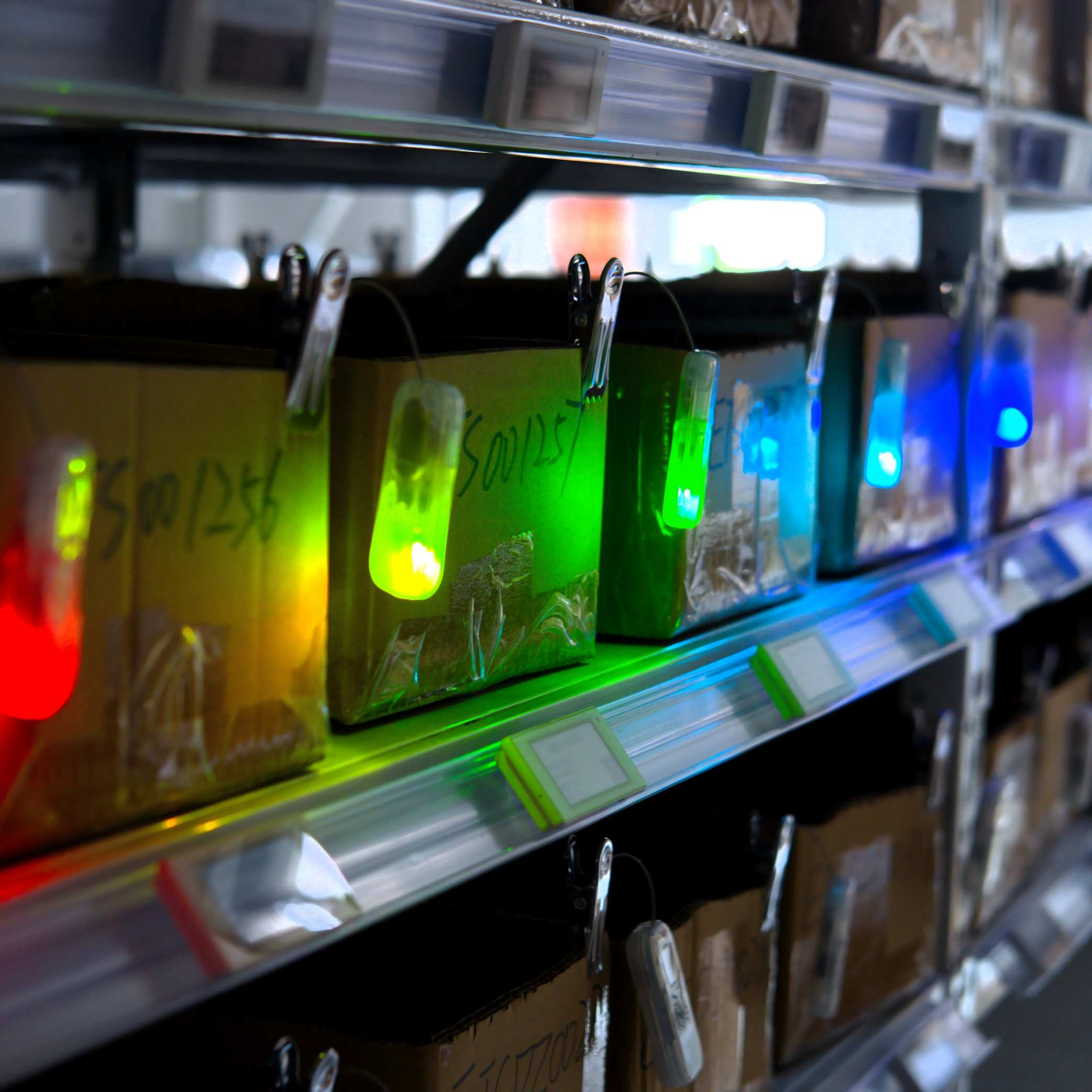

| Flashing Colors | Red, green, blue (RGB) primary colors; capable of mixing to display seven colors; independently controlled |
| Button Lifespan | ≥ 100,000 presses |
| Mounting Method | Clip (standard accessory) |
| Operating Temperature | -25~60℃ |
| Storage Temperature | -30~70℃ |
| Ambient Humidity | ≤80% RH |
| Communication Parameters | |
| Frequency Band | 2.4G |
| Communication Protocol | Proprietary protocol |
| Communication Distance | ≥30m in open space |
| Signal Strength Detection | Supports signal strength sampling function; readable by the system |
| Battery Level Detection | Supports battery level sampling function; readable by the system |
